• Analog instrumentation-inc: voltmeter, oil pressure, water temp, tachometer
• Assist handles-inc: color-keyed (2) front passengers, (2) second row
• Audiophile AM/FM stereo w/6-disc in-dash CD changer-inc: speed-compensated volume control, (7) speakers, 260-watt amp, RDS, clock, partial mute, subwoofer, MP3 capability
• Cargo area pwr point
• Carpeted floor mats for 1st/2nd row
• Coat hooks-inc: (2) second row, 3rd row
• Color-keyed cloth headliner
• Color-keyed cloth sunvisors w/auxiliary visors, dual illuminated mirrors
• Color-keyed leather-wrapped steering wheel w/cruise/audio/climate controls
• Concealed antenna in RH quarter glass
• Cruise control
• Cup holders-inc: (2) front/(2) rear in front console, (4) door trim panels, (3) rear quarter trim panels
• Dual zone electronic automatic temp control air conditioning w/auxiliary climate controls & exterior temp read out
• Electrochromic rearview mirror
• Floor carpeting
• Floor console-inc: storage, coinholder, rear passenger audio controls w/ headphone jacks, tissue holder, (2) front/(2) rear cup holders, padded cover, (2) front/rear pwr points, auxiliary HVAC controls, AdvanceTrac switch, climate controlled seat switches, pen holder
• Front & rear door map pockets
• Glove box
• Head restraints at all outboard seating positions
• Leather 2nd row 40/20/40 split bench seat-inc: sliding center portion, recline & fold flat feature, carpeted seatbacks, easy-entry to 3rd row feature
• Lights-inc: glove box, front door approach, front dome/map, rear cargo, 2nd row map lights, illuminated entry, theater lighting
• Message center-inc: million mile odometer, trip odometer, average fuel economy, distance to empty, trip elapsed time, outside temp, compass, message center warnings
• Overhead console-inc: map lights, dual sunglasses holders, front auxiliary HVAC controls, conversation mirror, pwr rear quarter window switch
• Pwr accessory delay
• Pwr adjustable accelerator/brake pedals w/2-position memory
• Pwr door locks-inc: auto lock
• Pwr point in passenger-side foot well
• Pwr windows w/driver one-touch-down
• Rear seat heat ducts
• Rear window defroster
• Remote keyless entry w/(2) key fobs, illuminated entry
• SecuriLock passive anti-theft system
• Tilt steering column
• Tire pressure monitoring system
• Two-tone leather trimmed high back captains chairs-inc: 6-way pwr driver seat w/memory, dual manual lumbar
• Vinyl 3rd row 60/40 split bench seat-inc: fold flat feature

• 110-amp alternator
• 17" x 7.5" machined aluminum wheels w/chromed center caps
• 28 gallon fuel tank
• 3.31 axle ratio
• 3350# capacity front axle/4128# capacity rear axle
• 4-wheel disc brakes w/anti-lock & brake assist
• Double wishbone front suspension w/coil-over shock
• Front/rear stabilizer bars
• Full size all-season BSW spare tire
• Independent rear suspension
• Integrated Class III trailer towing receiver-inc: 4-pin connector
• Maintenance-free battery w/battery saver feature
• P265/70R17 all-season OWL tires
• Rear wheel drive
• Steel spare wheel
• Variable assist pwr rack & pinion steering

• 3-point color-keyed lap & shoulder safety belts on all outboard seats
• 4-wheel disc brakes w/anti-lock & brake assist
• Beltminder system-inc: buckle pretensioners, load-limiting retractors
• Child-proof rear door locks
• Front dual-stage airbags-inc: driver seat position & crash severity sensing
• LATCH system on rear outboard seats
• Side intrusion door beams

5.4L SOHC SEFI 24-VALVE V8 ENGINE ($0)

• (STD)

• 3rd Row Seat
• Premium Sound System
• Rear Seat Audio Controls
• Steering Wheel Audio Controls
• Multi-Zone A/C
• Rear A/C
• Brake Assist
• Leather Seats
• Power Driver Seat
• Seat Memory

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1650
• Cooling System
• Total Cooling System Capacity (qts): 13
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3150
• Gross Axle Wt Rating - Rear (lbs): 4128
• Curb Weight - Front (lbs): 2593
• Curb Weight - Rear (lbs): 2703
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 11800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Coil Spring
• Spring Capacity - Front (lbs): 3150
• Spring Capacity - Rear (lbs): 4128
• Axle Type - Front: Independent
• Axle Type - Rear: Independent
• Axle Capacity - Front (lbs): 3350
• Axle Capacity - Rear (lbs): 4128
• Axle Ratio (:1) - Rear: 3.31
• Shock Absorber Diameter - Front (mm): 34.93
• Shock Absorber Diameter - Rear (mm): 34.93
• Stabilizer Bar Diameter - Front (in): 1.38
• Stabilizer Bar Diameter - Rear (in): 0.87
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.9
• Tires
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2305
• Rear Tire Capacity (lbs): 2305
• Spare Tire Capacity (lbs): 2305
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Rear: 654
• Revolutions/Mile @ 45 mph - Spare: 654
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Variable Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.5
• Turning Diameter - Curb to Curb (ft): 39.2
• Turning Diameter - Wall to Wall (ft): 40.5
• Frame
• Frame Type: Front-to-Rear Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 28
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/rear bumper (in): 205.8
• Width, Max w/o mirrors (in): 78.7
• Height, Overall (in): 76.7
• Overhang, Front (in): 38.6
• Overhang, Rear w/bumper (in): 48.3
• Ground to Top of Load Floor (in): 33.5
• Ground Clearance, Front (in): 9.6
• Ground Clearance, Rear (in): 9.3
• Rear Door Opening Height (in): 35.5
• Rear Door Opening Width (in): 57.0
• Step Up Height - Front (in): 21.6
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 82.8
• Cargo Area Length @ Floor to Seat 2 (in): 44.7
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Volume to Seat 1 (ft³): 110.5
• Cargo Volume to Seat 2 (ft³): 60.9
• Cargo Volume to Seat 3 (ft³): 20.7
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 39.7
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 63.4
• Front Hip Room (in): 63.0
• Second Head Room (in): 39.8
• Second Leg Room (in): 38.7
• Second Shoulder Room (in): 64.3
• Second Hip Room (in): 62.4
• Third Head Room (in): 38.2
• Third Leg Room (in): 36.3
• Third Shoulder Room (in): 60.1
• Third Hip Room (in): 54.5
• Summary

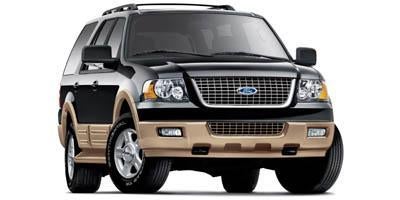

• Vehicle Name: Ford Expedition
• Body Style: 4 Door
• Body Code: 119" WB
